| 1.系列代码 Series Symbol | CM |
| 2.入口口径 Suction Size | 4:40A(1 1/2") 5:50A(2") 6:65A(2 1/2") |
| 3.出口口径 Discharge Size | 4:40A(1 1/2") 5:50A(2") |
| 4.马力 Motor Power | 0:1/2HP(0.37kW) 1:1HP(0.75kW) 2:2HP(1.5kW) 3:3HP(2.2kW) 5:5HP(3.75kW) |
| 5.配管形式 Type of Connection | F:法兰Flange U:由任Union |
| 6.泵体材质 Casing Material | G:GFRPP C:CFRPP P:PVDF E:CFRETFE |
| 7.泵轴材质 Shaft Material | A:高铝陶瓷CERAMIC S:碳化硅SSIC |
| 8.轴承材质 Bearing Material | A:高铝陶瓷CERAMIC C:碳CARBON R:填充四氟PTFE S:碳化硅SSIC |
| 9.O型圈材质 O-Ring Material | E:三元乙丙EPDM V:氟橡胶VITON K:高氟化橡胶FKM |
| 10.叶轮代码 Code of impeller | 5：50HZ 6：60HZ |
| 11.电机类型 Motor type | 无标志No code:TEFC室内型Indoor type C:TEFC 室外型Outdoor type A:增安型Increased safety type |
| 12.特殊代码 Special code | 无标志No code: 标准型Standard type S:特殊型special type |
产品参数：

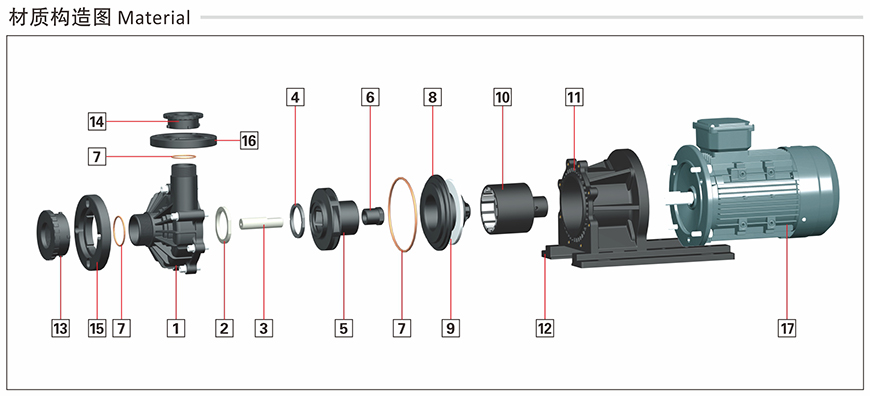

| 编号 NO. | 名称Description | ACE | ACV | ARE | ARV | AAE | AAV | SSE | SSV |
| 1 | 前盖 Pump casing | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 2 | 前止推环 Front thrust ring | CERAMIC | SSIC | ||||||
| 3 | 泵轴 Shaft | CERAMIC | SSIC | ||||||
| 4 | 耐磨环 Wear resistant ring | PTFE | SSIC | ||||||
| 5 | 叶轮 Impeller unit | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 6 | 轴承 Bearing | CARBON | PTFE | CERAMIC | SSIC | ||||
| 7 | O形圈 O-Ring | EPDM | VITON | EPDM | VITON | EPDM | VITON | EPDM | VITON |
| 8 | 后盖 Rear casing | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 9 | 后盖背板 Backup plate | SUS304 | |||||||
| 10 | 驱动磁铁 Drive magnet | Nd-Fe-B | |||||||
| 11 | 支架 Frame | GFRPP/FC | |||||||
| 12 | 底座 Base frame | GFRPP/SUS304 | |||||||
| 13 | 入口法兰连接件 Inlet flange adapter | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 14 | 出口法兰连接件 Outlet flange adapter | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 15 | 入口活动法兰 Inlet adjustable flange | GFRPP/PVDF | |||||||
| 16 | 出口活动法兰 Outlet adjustable flange | GFRPP/PVDF | |||||||
| 17 | 马达 Motor | ||||||||

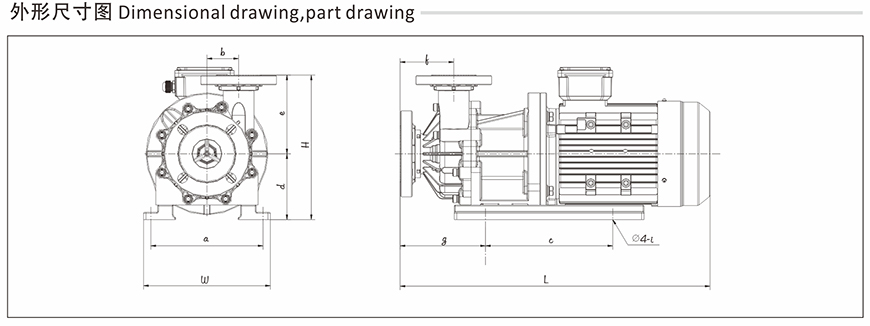

| 型式 Type | W | H | L | a | b | c | d | e | f | g | i |
| MPH-440 | 140 | 216 | 428 | 110 | 51 | 98 | 95 | 121 | 87 | 147 | 12 |
| MPH-441 | 160 | 255 | 478 | 130 | 57.5 | 130 | 115 | 140 | 104.5 | 174.5 | 12 |
| MPH-542 | 260 | 255 | 576 | 208 | 65 | 200 | 115 | 140 | 91 | 156.5 | 14 |
| MPH-552 | 260 | 255 | 576 | 208 | 65 | 200 | 115 | 140 | 91 | 156.5 | 14 |
| MPH-543 | 260 | 255 | 576 | 208 | 65 | 200 | 115 | 140 | 91 | 156.5 | 14 |
| MPH-553 | 260 | 255 | 576 | 208 | 65 | 200 | 115 | 140 | 91 | 156.5 | 14 |
| MPH-545 | 260 | 275 | 613.5 | 230 | 65 | 261 | 135 | 140 | 91 | 156.5 | 14 |
| MPH-555 | 260 | 275 | 613.5 | 230 | 65 | 261 | 135 | 140 | 91 | 156.5 | 14 |
| MPH-653 | 260 | 276 | 496.5 | 208 | 65 | 200 | 115 | 161 | 110 | 176.5 | 14 |
| MPH-663 | 260 | 276 | 496.5 | 208 | 65 | 200 | 115 | 161 | 110 | 176.5 | 14 |
| MPH-655 | 260 | 296 | 635.5 | 230 | 65 | 261 | 135 | 161 | 110 | 178.5 | 14 |
| MPH-665 | 260 | 296 | 635.5 | 230 | 65 | 261 | 135 | 161 | 110 | 178.5 | 14 |

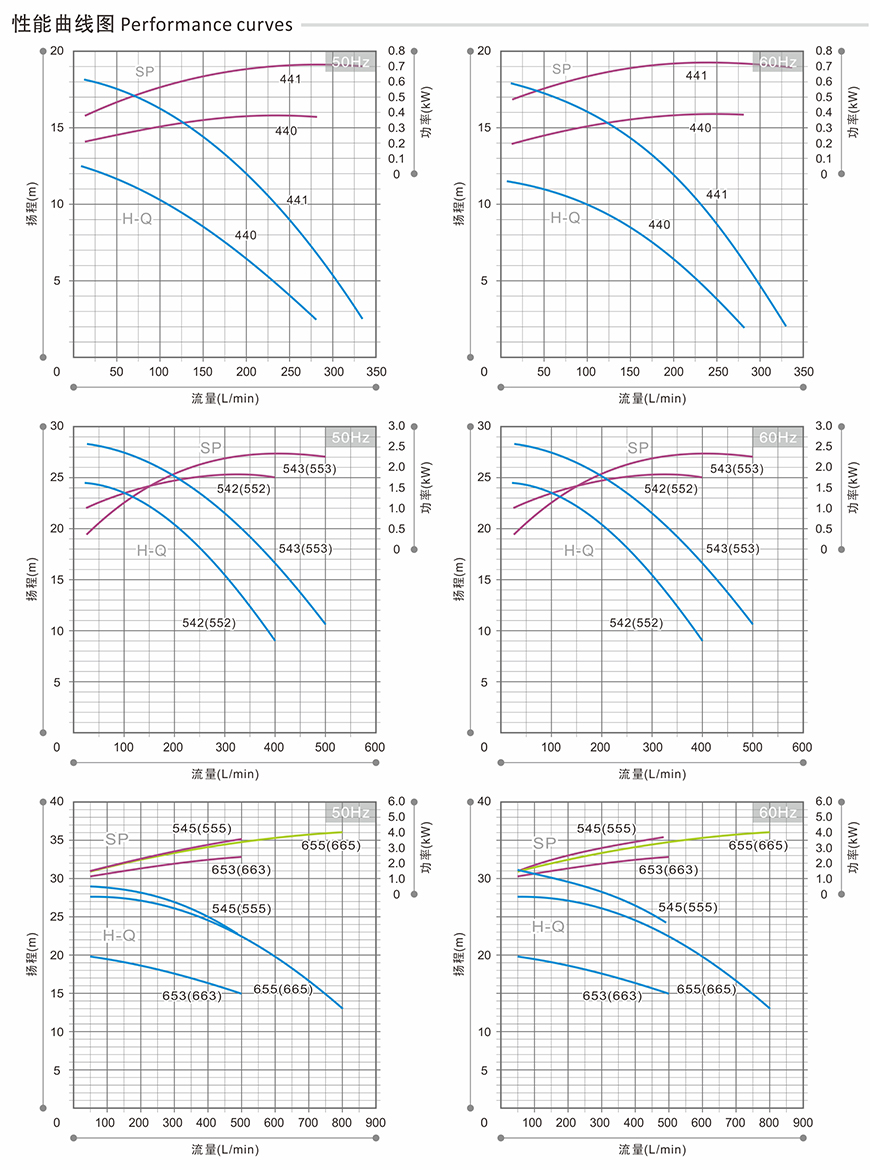

性能曲线表：
规格表：
| 型号 Model |
入口×出口 Inlet×Outlet |
比重极限值 Specific Qravity |
额定流量 Rated Capacity (L/min) |
额定扬程 Rated Head (m) |
最大流量 Max. Capacity (L/min) |
最大扬程 Max. Head (m) |
马达输出功率 Motor output (kW) |
| MPH-440 | 40A×40A | 1.0 | 150/150 | 8.5/8.5 | 280/280 | 12.5/11.5 | 0.37 |
| MPH-441 | 40A×40A | 1.0 | 200/200 | 12/12 | 330/320 | 18/18.5 | 0.75 |
| MPH-542 | 50A×40A | 1.2 | 250/250 | 19/19 | 400/400 | 24/24 | 1.5 |
| MPH-552 | 50A×50A | 1.2 | 250/250 | 19/19 | 400/400 | 24/24 | 1.5 |
| MPH-543 | 50A×40A | 1.0 | 300/300 | 22/22 | 500/500 | 28/28 | 2.2 |
| MPH-553 | 50A×50A | 1.0 | 300/300 | 22/22 | 500/500 | 28/28 | 2.2 |
| MPH-545 | 50A×40A | 1.0 | 400/400 | 26.5/26.5 | 600/600 | 29/31 | 3.75 |
| MPH-555 | 50A×50A | 1.0 | 400/400 | 26.5/26.5 | 600/600 | 29/31 | 3.75 |
| MPH-653 | 65A×50A | 1.0 | 450/450 | 16.5/16 | 600/600 | 20/20 | 2.2 |
| MPH-663 | 65A×65A | 1.0 | 450/450 | 16.5/16 | 600/600 | 20/20 | 2.2 |
| MPH-655 | 65A×50A | 1.0 | 500/500 | 18.5/22 | 730/800 | 28/29 | 3.75 |
| MPH-665 | 65A×65A | 1.0 | 500/500 | 18.5/22 | 730/800 | 28/29 | 3.75 |
